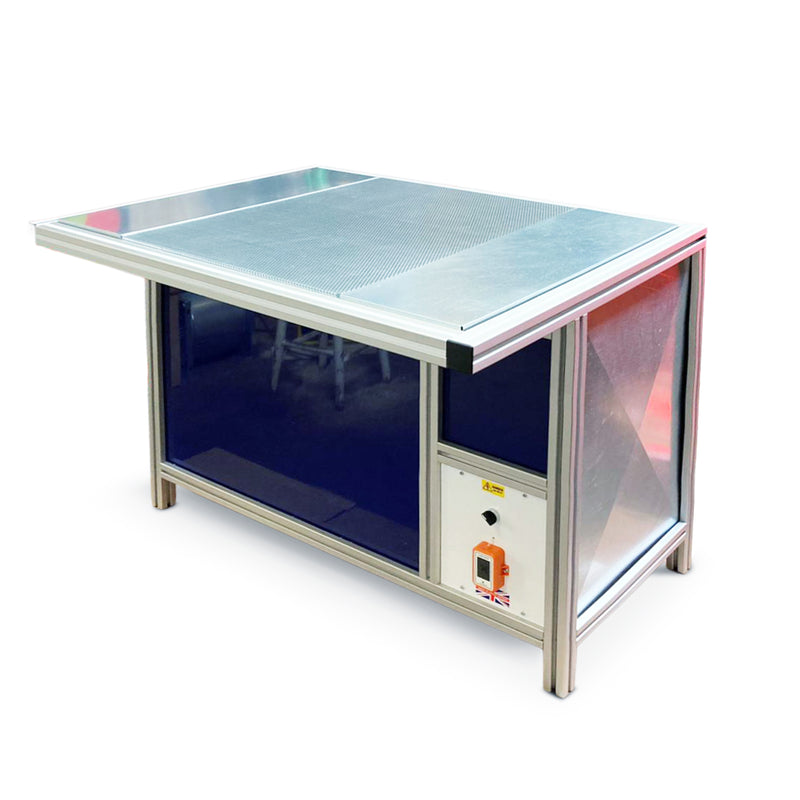

Industrial Extraction Preparation Bench

A robust, self-contained workstation designed for effective dust and fume control during preparation, grinding, and sanding tasks. This extraction bench combines a heavy-duty workspace with a high-volume filtration system. Built with a 300mm overhang for ergonomic legroom, it is designed for comfortable, long-term use in busy workshop environments.

Technical Specifications

• External Dimensions: 1200 x 900 x 850mm
• Frame Footprint: 1200 600mm
• Ergonomics: 300mm front overhang for operator legroom
• Airflow performance: Up to 3000m³/hr (1750 cfm) @ 400 Pa
• Motor: 0.55kw single phase (Max current 4.5A)
• Fan type: Direct-driven, double inlet centrifugal fan
• Filtration: 2 x Removable pocket-type filters (545mm x 500mm x 150mm)
• Monitoring: Integrated Monitair Chevron Pressure indicator for real-time airflow monitoring
• Controls: Simple on/off switch with variable speed controller for precise airflow adjustment
