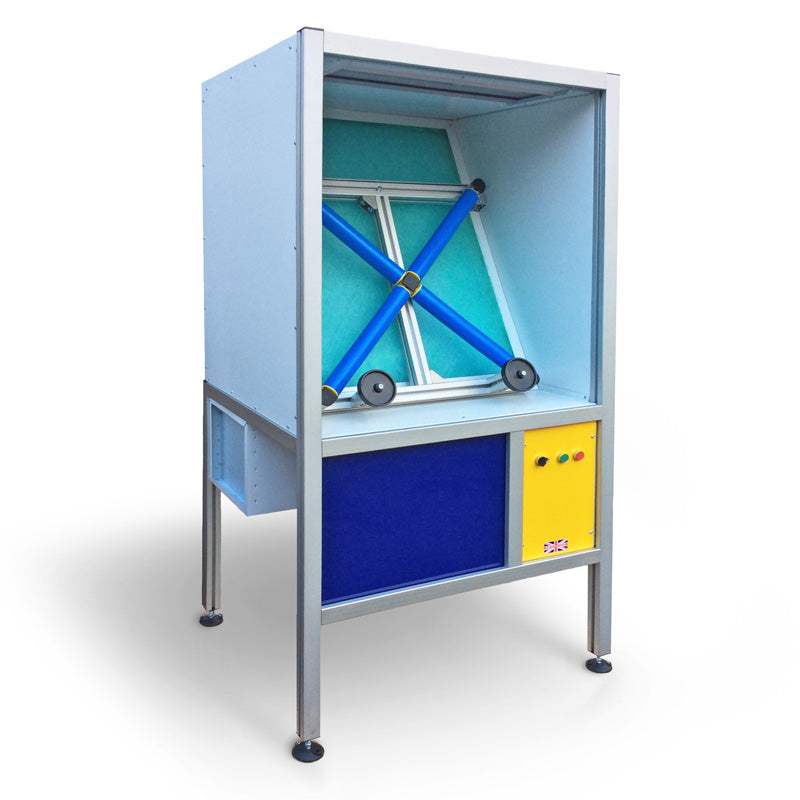

Alloy wheel spraybooths
A free standing spraybooth design specifically for the fast refinishing of alloy wheels and other small components. Suited to the workshop and for fitting into the back of a van for the mobile technician.
These booths are designed for workshop installation and meet all relevant Health & Safety and Environmental Protection legislation.

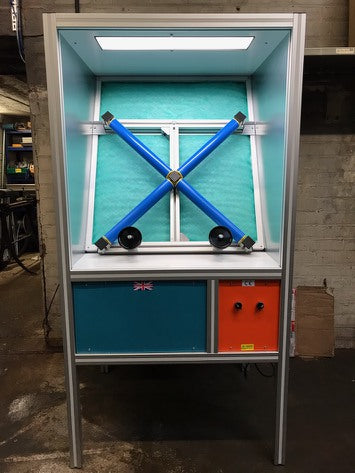

Single Alloy Wheel Booth
| Single Booth | |
| Dimensions (W x D x H) | 900 x 800 x 1740 mm * |
| Airflow | 2000 m3/hr |
| Power | 0.37kW 240V single phase |
| Running current | 2.5A |
| Filter area | 1.0m2 |
| Turntable | Includes 1 |
* Single - 650mm deep variant available for van installation

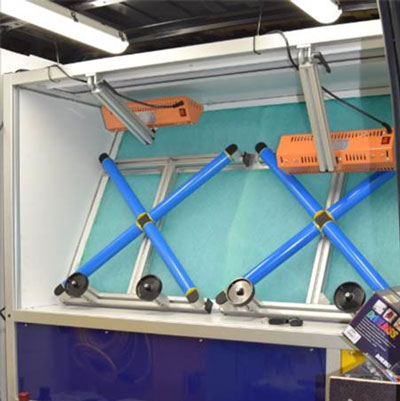

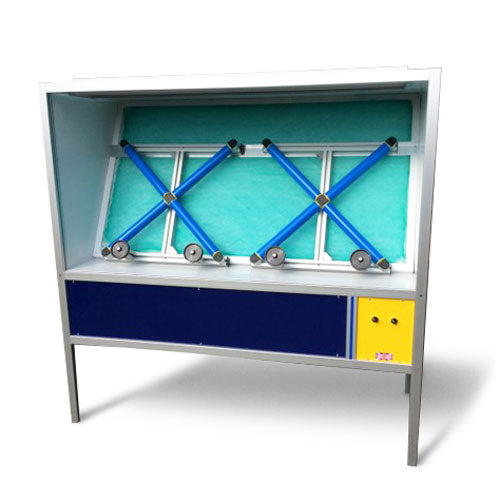

Our Double Alloy Wheel Booths have quiet, high performance
fans, 2 off turntables, integrated work light, dual layer filtration and front panel mounted controls. The booths are made to the highest quality standards and combine excellent performance with robust construction to offer the highest possible value for money.
These booths are designed for workshop installation and meet all relevant Health & Safety and Environmental Protection legislation.
| Double | |
| Dimensions (W x D x H) | 1790 x 800 x 1740 mm |
| Airflow | 3600 m3/hr |
| Power | 0.75kW 240V single phase |
| Running current | 5.3A |
| Filter area | 1.8m2 |
| Turntable | Includes 2 |
Construction
Manufactured from an anodised aluminium frame with galvanised and pre-painted steel body panels. Inclined wheel turntables included as standard.
Fan systems
Quiet running, direct driven, double inlet, centrifugal fan with single phase motor mounted outside the airflow.
Lighting & controls
Single LED batten mounted above transparent panel in booth ceiling.
Light and Fan switches mounted on front panel. 3m power lead plugs into standard 3-pin 240V wall socket
The alloy wheel repair booth is compact, powerful and efficient. We can supply them complete with ducting ready for you to install, or offer a fully fitted service in the Midlands area.
Call us now on 07887834796 or email us for more information.
