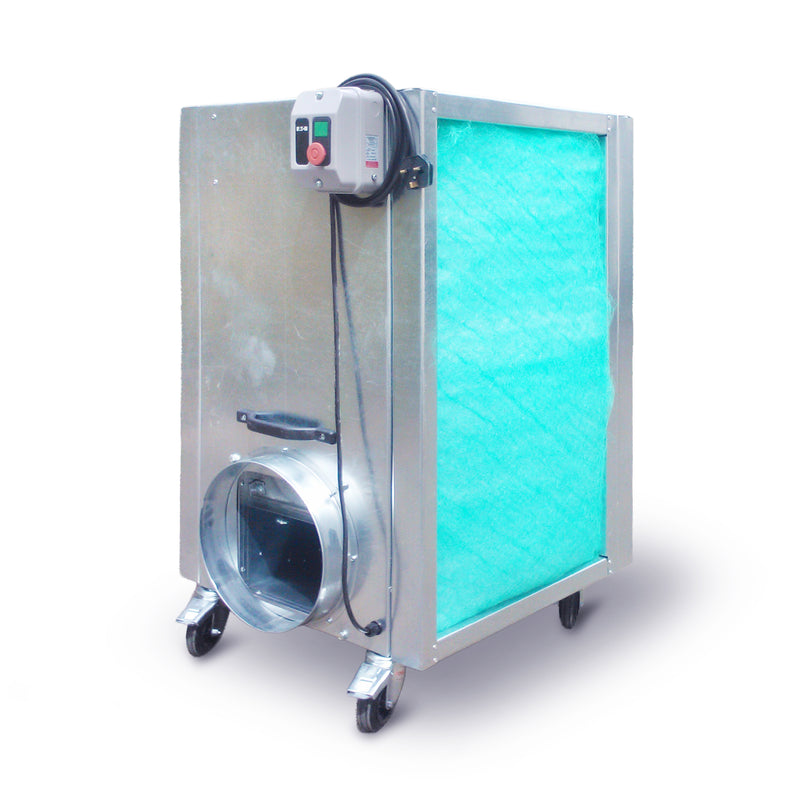

Smartmate portable extraction unit

A heavy-duty, high-volume mobile extraction system designed for SMART repairs, spot touch-ups, and component spraying without tying up full-sized spraybooth capacity.

Built on heavy-duty castors for complete workshop mobility, the SmartMate combines a powerful 1.1kW centrifugal fan with 3-sided filtration to capture overspray and fumes directly at the source. Ideal for volume bodyshops, SMART repair specialists, joineries, and industrial manufacturing facilities requiring compliant, localised air extraction.

Key Features

High-capacity airflow: Moves excess of 3,600m³/hr via a robust direct-driven centrifugal fan unit.

Mobile & flexible: Mounted on durable castors to wheel effortlessly to wherever spraying or preparation is taking place.

Complete fume discharge: Supplied with 6 metres of 315mm flexible ducting to vent air safely outdoors.

Built-in thermal protection: Equipped with a dedicated push-button starter incorporating thermal overload protection for safe daily operation.

Custom power options: Standard 240V single-phase supply, with 110V and 415V three-phase configurations available on request.

Technical Specifications

Footprint: 610 x 750mm

Height: 1,100mm

Airflow :3,600 m³/hr (open vent, diminishes with duct length)

Fan: Direct-driven centrifugal fan unit

Motor rating: 1.1kW single phase (240V standard)

Controls: Push-button starter with thermal overload protection

Filtration: Multi-sided extraction (3-sided or 3-sided + top)

Ducting: 6m x 315mm flexible discharge hose (extra lengths available)

Mobility: Heavy-duty lockable castor wheels

Lead time: Approx 4 weeks from order confirmation

Need a 110V site setup, 415V three-phase, or additional ducting lengths? Contact our technical team on 07887 834796 or email info@filtercare.co.uk for a custom configuration quote.
