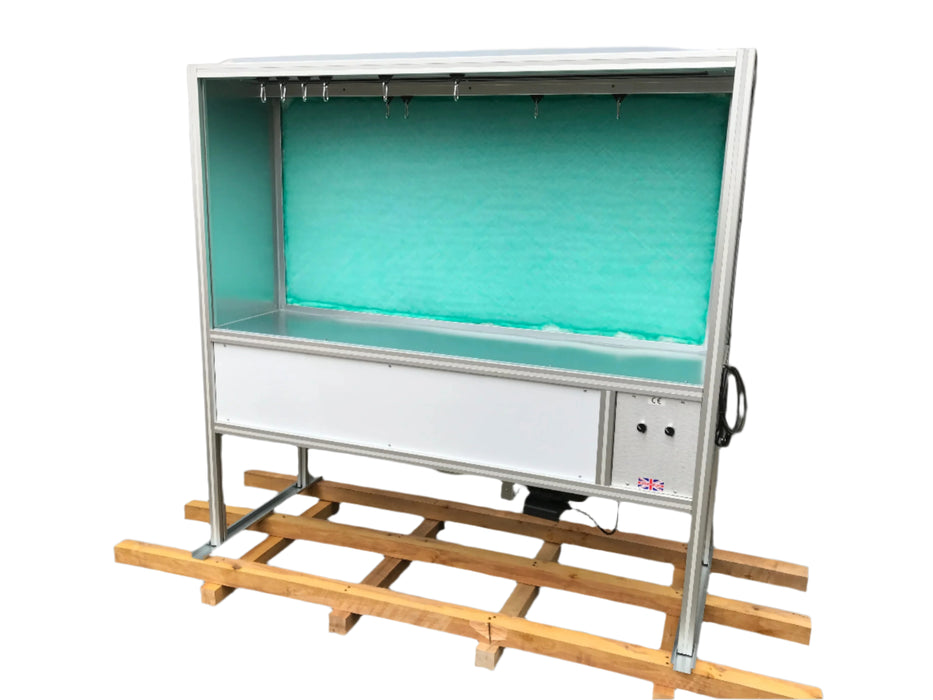

Bench booth
Designed to provide a clean, convenient environment for the painting of small parts. The booths provide a bench level working area with extraction, filtration and lighting.
The ideal platform to enable trouble-free spray painting whilst meeting Health & Safety and Environmental Protection legislation
The booths have quiet, high performance fans, integrated work light, parts hanging rail, dual layer filtration and front panel mounted controls. The booths are made to the highest quality standards and combine excellent performance with robust construction to offer the highest possible value for money.
| Dimensions (W x D x H) mm | Airflow | Power | Running current | Filter area | Parts hangers |
|---|
|
1800w x 800d x 1750h |
3000 m3/hr | 0.75kW 240V | 5.3A | 1.8m2 | Includes 10 sliding hooks |
| 1200w x 800d x 1750h | 2000 m3/hr | 0.55kW 240V | 4.0 | 1.0m2 | Includes 8 sliding hooks |
| 900w x 800d x 1750h | 1300m3/hr | 0.37kW 240v | 2.5A | 0.7m2 | Includes 6 sliding hooks |
Construction
Manufactured from an anodised aluminium frame with galvanised steel body panels.
Fan systems
Quiet running, direct driven, double inlet, centrifugal fan with single phase motor mounted outside the airflow.
Lighting & controls
Single LED batten mounted above transparent panel in booth ceiling.
Light and Fan switches mounted on front panel. 3m power lead plugs into standard 3-pin 240V wall socket.
Filtration
Dual Layer filtration to meet Environmental Health standards
Contact Paul on 07887 834796 for further details.
