SprayPal (Atex rated motor)

Primary Function

To be used as an air extractor in potentially explosive environments contaminated by small airborne particles. Expelled air is naturally replaced by clean atmospheric air to maintain a clean and safe environment.

Markets

Designed as a portable extraction fan for on-site work in confined spaces when using spray painting processes.

Equally useful for any environment where airborne contaminates are present.

Basic Design

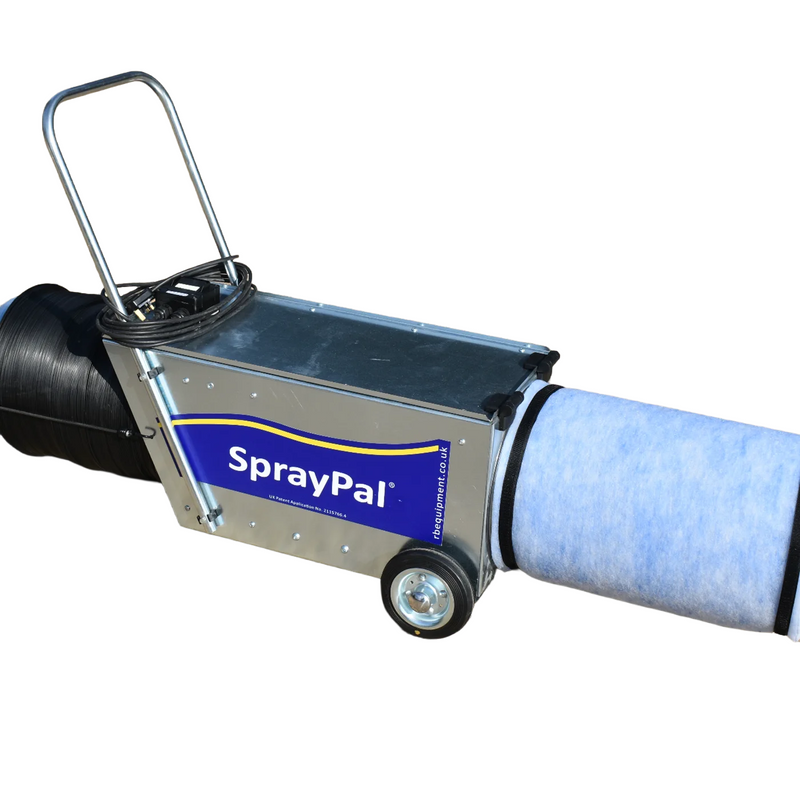

A high airflow axial fan, driven by an explosion proof motor, mounted in a portable wheeled case. An inlet filter, fitted to capture airborne particles from the extracted air, and a long length of flexible ducting to safely transport the cleaned air away from the working area to atmosphere.

Features

• Lightweight, plastic bladed impeller.

• ‘Ex’ certified, Zone 1, 2 pole, foot-mounted, industrial motor.

• 240V, 0.37kW.

• Nominal airflow 1700 m³/hr

• Filter pad to EU5 standard. Simple velcro fastening filter retaining straps.

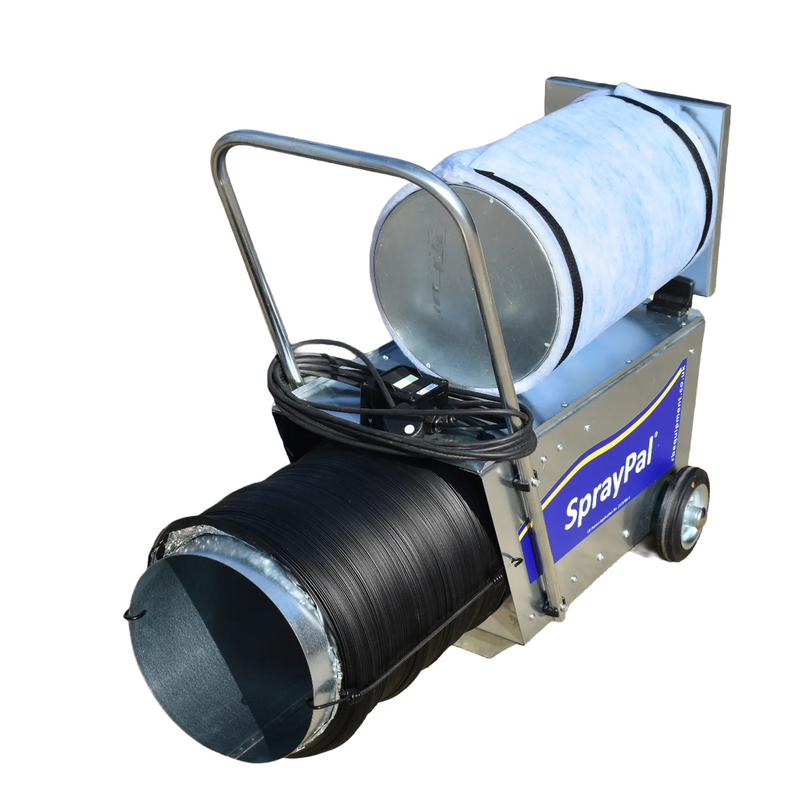

• Extendable/retractable flexible ducting mounted on a fixed transport tube. 6m fully extended, 0.5m fully retracted.

• “Periscope” duct providing filtered air for motor cooling and maintaining a solid barrier to the main airflow thereby extending motor cleanliness.

• Certified anti-static main wheels.

• flameproof cable glands throughout.

• 6m flexible supply cable.

• Braked castors for secondary wheels.

• Easily removable lid giving full access for fan blade and motor inspection and maintenance.

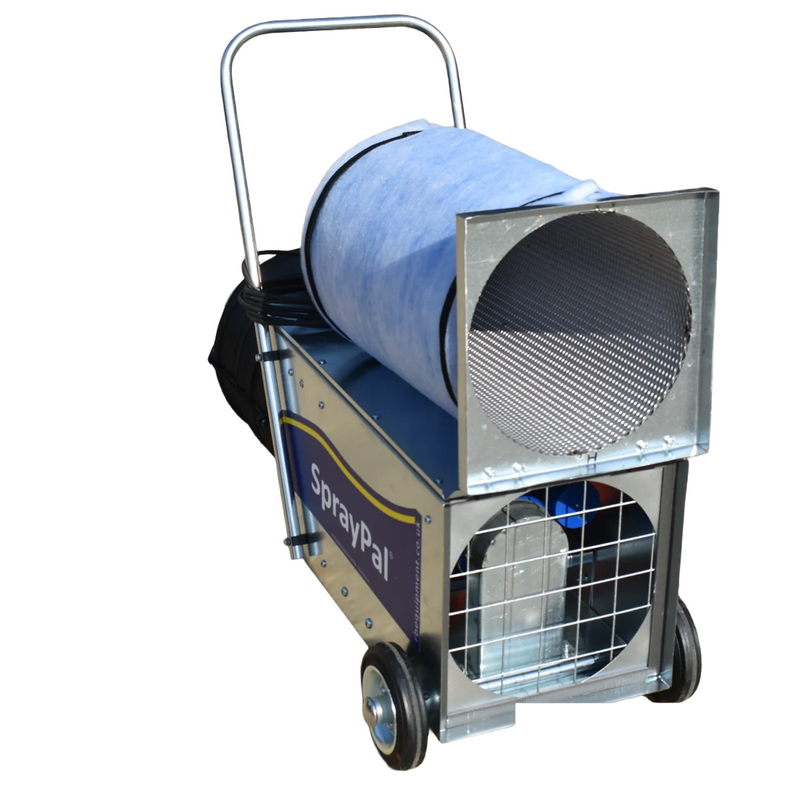

• Hinged main filter tube to reduce overall machine length when not in use. Particularly useful to reduce footprint when transporting.
